JY-210AP Horizontal Coding and Sealing Machine

Horizontal Economy Design: The JY-210AP is a horizontal continuous band sealing machine positioned as an

economy-type entry, offering reliable sealing performance at a compact footprint of 1120x480x1060 mm and a

machine weight of 65 kg

Adjustable Conveying Speed: Sealing speed is adjustable from 0-24 m/min via a 24V/120W/18K motor, supporting

variable production rates for different bag types and line speeds.

Wide Temperature Range: Temperature control range is 0-280°C with dual heating tubes rated at 45oW/180×10

mmx2, providing stable heat for consistent sealing across a range of packaging materials.

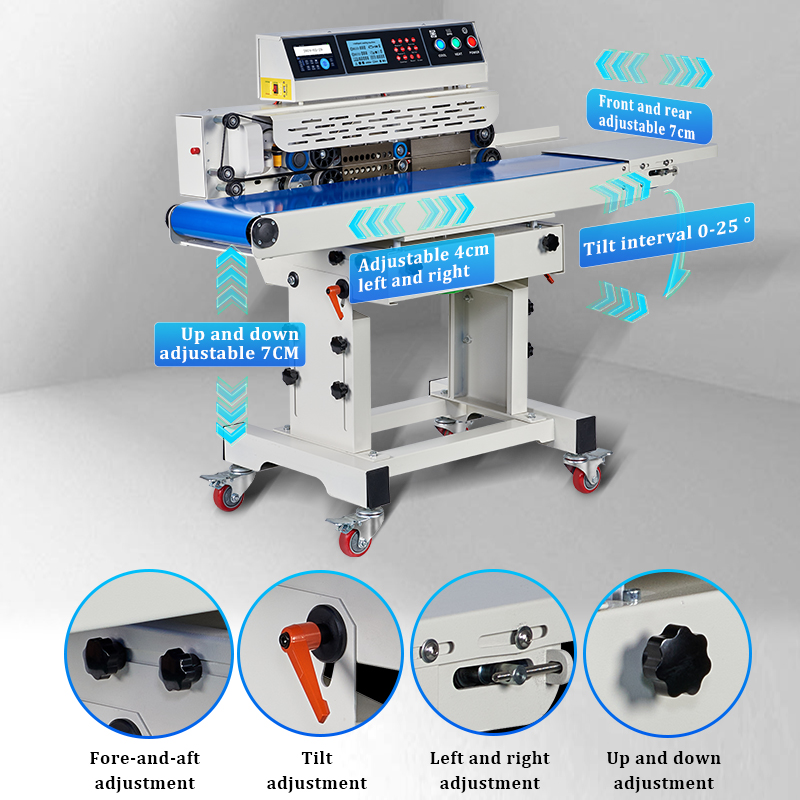

Adjustable Conveyor Height: Conveying table ground clearance is adjustable from 700-900 mm, accommodating

different operator heights and production line configurations.

Large Max Bag Compatibility: Maximum bag size is 320×260 mmx10C, covering a broad range of common stand-up pouches and flat bags as shown in the product image

High Load Capacity: Conveyor load-bearing is 10 kg, supporting heavier flled bags on continuous production lines.

Broad Options Availability: The machine supports optional configurations including 1oV power supply, widenedsealing, longer blank, steel wheel printing, ribbon coding, ordinary code, and high-performance code -as listed in

the parameter table footnote.

Machine Specifications: Power supply 220V/50-60Hz, capacity 100W, sealing width 10 mm, machine size

1120x480x1060 mm, machine weight 65 kg.
